Why Maintenance Matters
An LED video wall is a significant investment — often running into lakhs or even crores of rupees. Yet many businesses install them and forget about maintenance until something goes wrong. A proactive maintenance strategy can extend your LED wall's lifespan from the typical 5–7 years to well over 10, saving you lakhs in premature replacement costs.
LED video walls are engineered for durability, but they're still complex electronic systems with thousands of individual LEDs, driver ICs, power supplies, and receiving cards working in concert. Without regular care:
- Brightness degrades unevenly — some modules dim faster, creating a patchwork look
- Dust accumulation causes overheating, which accelerates LED decay and can damage PCBs
- Color drift sets in as LEDs age at different rates without periodic calibration
- Component failures go unnoticed and cascade into larger, costlier problems
We've seen walls that cost ₹25 lakhs fail completely within 3 years due to zero maintenance. A ₹2,000/month cleaning routine could have saved the entire investment. — PixelSpot Service Team
Daily & Weekly Habits
Visual Inspection (Daily — 2 minutes)
Walk past your LED wall each morning and glance at a white or solid-color test pattern. Look for:
- Dead pixels or pixel clusters (dark spots)
- Bright spots or stuck pixels
- Color inconsistencies between modules
- Flickering or scan lines
Catching issues early means a single module swap instead of a full-panel replacement.
Ventilation Check (Weekly — 5 minutes)
Ensure air intakes and exhausts are unobstructed. Check that cooling fans (if present) are spinning freely. Indoor walls in dusty environments like retail showrooms need extra attention here.
Monthly Cleaning Protocol
Front Surface Cleaning
- Power off the wall and wait 10 minutes for it to cool down
- Use a soft-bristle brush or compressed air (from 15+ cm distance) to remove loose dust
- Wipe gently with a microfiber cloth — never paper towels or abrasive materials
- For stubborn spots, dampen the cloth with distilled water only — no chemicals, no glass cleaners
- Never spray liquids directly onto the LED surface
Rear Access & Internal Cleaning
- Open rear access panels
- Use compressed air to blow dust off power supplies, receiving cards, and cable connections
- Check cable connections — reseat any that feel loose
- Inspect for signs of moisture, corrosion, or insect ingress
Pro Tip: Keep a maintenance log. Note the date, what you cleaned, and any anomalies spotted. This log becomes invaluable when troubleshooting issues later.
Quarterly Calibration
Over time, individual LED modules age at slightly different rates, causing visible brightness and color differences across the wall. Calibration corrects this.
Brightness Calibration
Use your LED controller software (e.g., NovaStar's NovaLCT or Colorlight's LEDVISION) to:
- Run a uniformity test pattern (solid white at 50% brightness)
- Identify modules that appear brighter or dimmer than average
- Adjust individual module brightness coefficients to match
Color Calibration
For precise results, use a colorimeter to measure each module's white point and color gamut. The controller software can then apply per-module color correction coefficients.
If you don't have calibration equipment, PixelSpot offers annual calibration services as part of our AMC plans.
Bi-Annual Deep Maintenance
Power Supply Health
- Measure output voltages — they should be within ±5% of rated values (typically 5V or 4.2V)
- Check for swollen capacitors, burnt smell, or discoloration
- Verify that fan bearings aren't grinding (replace if noisy)
- Test under full-white load — some PSU issues only appear at peak draw
Receiving Card & Cables
- Reseat all flat-flex (FFC/FPC) and data cables
- Inspect Ethernet/fiber connections to the sending card
- Check that receiving card firmware is up to date
Structural Integrity
- Inspect the mounting frame for any signs of stress, rust, or loosening
- For outdoor walls: check weatherproofing seals, gaskets, and drainage channels
- Ensure the wall hasn't shifted — especially for wall-mounted or hanging installations
Environment-Specific Tips
Indoor (Retail, Corporate, Worship)
- Control ambient temperature between 20–30°C
- Maintain humidity below 65% to prevent condensation
- Run the wall at 60–70% brightness indoors — this dramatically extends LED life
- Use a UPS or voltage stabilizer to protect against power surges

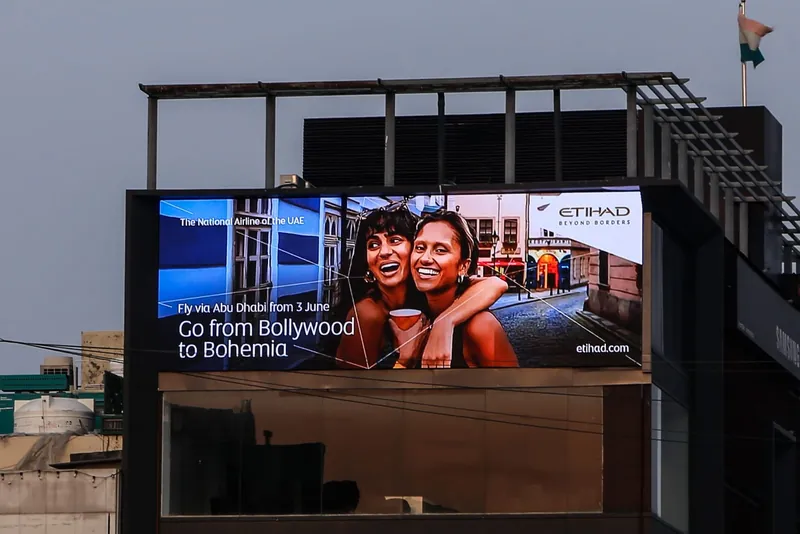

Outdoor (Advertising, Stadiums, Highways)
- Verify IP65/IP54 rating seals remain intact after monsoon seasons
- Clean bird droppings and environmental debris promptly — they're corrosive
- Check automatic brightness sensors are calibrated
- Inspect lightning protection / earthing connections annually
Troubleshooting Common Issues
Dead Pixels / Dark Modules
Cause: Failed LED lamp, damaged driver IC, or loose FFC cable.
Fix: Reseat the module's data cable first. If the issue persists, swap the module with a spare.
Flickering or Scan Lines
Cause: Poor grounding, signal interference, or a failing receiving card.
Fix: Check the grounding/earthing of the entire system. Try swapping the receiving card.
Color Mismatch Between Modules
Cause: Mixed LED batches, uneven aging, or incorrect calibration.
Fix: Recalibrate using controller software. If the mismatch is severe, the module may need replacement.
Overheating / Thermal Shutdown
Cause: Blocked ventilation, failed fans, or extreme ambient temperatures.
Fix: Clean dust from all vents immediately. Replace failed cooling fans.
Annual Maintenance Contract (AMC)
For businesses that want peace of mind, PixelSpot offers comprehensive AMC plans that include:
- 4× scheduled preventive maintenance visits per year
- 2× full calibration sessions with professional colorimeter
- Priority response for emergency breakdowns (within 24 hours)
- Spare module inventory held on your behalf
- Firmware updates and controller software upgrades
- Detailed health report after every visit
AMC pricing typically runs 8–12% of the wall's original cost per year — a small price compared to the cost of an unplanned failure.
Conclusion
Your LED video wall is built to last — but only if you treat it right. A consistent maintenance routine doesn't just prevent failures; it ensures your content always looks stunning, your colors stay accurate, and your investment pays dividends for a decade or more.
Whether you handle maintenance in-house or partner with PixelSpot's AMC program, the key is consistency. Set calendar reminders, keep a log, and never ignore early warning signs.
Have questions about maintaining your LED wall? Reach out to our team — we're happy to help.
