An LED wall's power draw depends on pitch, brightness and the content on screen. A full white frame at maximum brightness is the peak; normal video averages 25 to 35 per cent of that. The figures below are what we measure on PixelSpot installations in Bengaluru.
Power per square metre and per square foot
| Wall type | Average (typical content) | Peak (full white) |
|---|---|---|

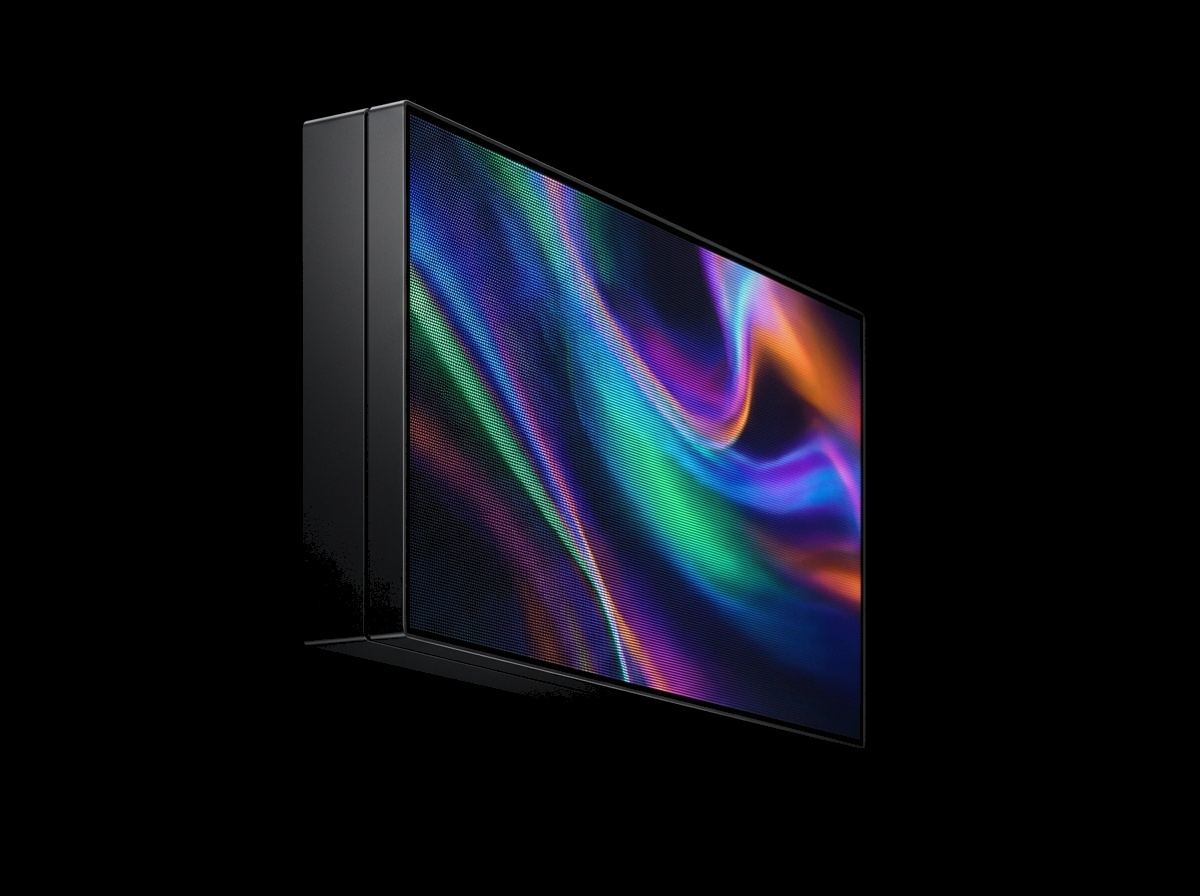

| Indoor P1.5 to P2.5, 800 to 1,000 nits | 150 to 250 W/m² (14 to 23 W/sq ft) | 500 to 700 W/m² (46 to 65 W/sq ft) |
| Outdoor P3 to P6, 5,000 to 6,500 nits | 250 to 350 W/m² (23 to 33 W/sq ft) | 700 to 900 W/m² (65 to 84 W/sq ft) |
Monthly electricity bill by wall size
Assumes indoor wall, 200 W/m² average, 10 hours a day, 30 days, BESCOM commercial tariff of about ₹8 per unit.
| Wall | Area | Average draw | Units per month | Monthly cost |
|---|---|---|---|---|
| 8×4 ft | 3.0 m² | 0.6 kW | 180 | ₹1,440 |
| 10×6 ft | 5.6 m² | 1.1 kW | 335 | ₹2,680 |
| 12×8 ft | 8.9 m² | 1.8 kW | 535 | ₹4,280 |
| 20×10 ft outdoor (300 W/m²) | 18.6 m² | 5.6 kW | 1,670 | ₹13,400 |
Circuit and wiring you need
- Size the supply for the peak, not the average. A 10×6 ft indoor wall peaks at about 3.9 kW, so a dedicated 20 A single-phase line.
- Walls above about 150 sq ft indoor or 100 sq ft outdoor should be on three-phase with the cabinets spread across phases.
- Use a stabiliser or online UPS where the site has voltage swings; power supplies are the most common failure after a sag.
- Outdoor walls need an earthed, IP65 distribution box within 3 m of the wall.
Ways to cut the bill
- Auto brightness: PixelOS dims the wall by ambient light, which alone saves 20 to 40 per cent on outdoor walls at night.
- Dark backgrounds: a black background with bright text uses a fraction of the power of a white one.
- Schedules: switch off or go to a low-power still after closing time.
- Common-cathode panels use 20 to 30 per cent less than common-anode at the same brightness; ask for them on large walls.
Get an exact quote: WhatsApp the wall size and location to +91 72048 08334 or use the 60-second configurator. Site survey and 3D mockup are free across Bengaluru.
